First 100 Hours (S670, S680 and S690 ProDrive Machines)

1. NOTE:


   H99377-UN-08DEC10

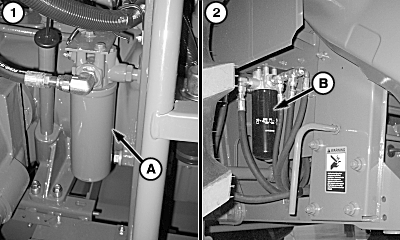

   H99378-UN-08DEC10

   A - Filter

   B - Filter

   It is not necessary to drain system when replacing filter.

   S670 ProDrive Machines: Engine Power Takeoff Gearcase Filter - Remove and replace filter (A). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

---




2. ProDrive Machines: ProDrive/Main Engine Gearcase Lube Filter - Remove and replace filter (B). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.
