Standard Discharge Beater—Wing Replacing (S680 and S690)

CAUTION:

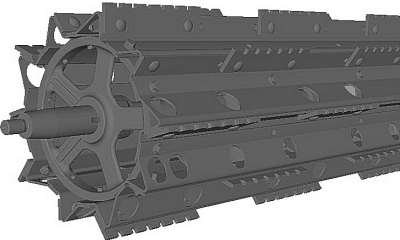

H85626-UN-27MAR06

Discharge Beater Wing (Standard)

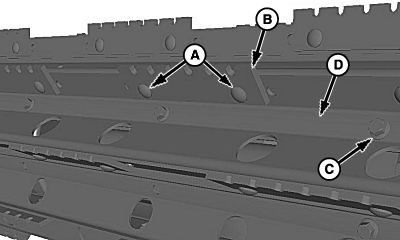

H85627-UN-27MAR06

Discharge Beater Wing (Standard)

A - Round Head Bolt(s)

B - Discharge Beater Wear Strip

C - Cap Screws

D - Discharge Beater Wings

NOTE: Wings can be reversed for additional wear.

Discharge beater wings and wear strips can be replaced without removing the discharge beater. Replace discharge beater wings in sets of two and opposite of each other to maintain proper balance.

NOTE: If discharge beater is removed from machine, or has been serviced, tighten clamp bolts before securing wings. Tighten cap screws to specification.

Remove round head bolts (A) and replace discharge beater wear strips (B) as required. Tighten round head bolts to specification.

Item	Measurement	Specification
Discharge Beater Wear Strip Round Head Bolts	Torque	70 N·m (52 lb.-ft.)

Remove cap screws (C) and replace discharge beater wings (D) as required. Tighten cap screws to specification.

Item	Measurement	Specification
Discharge Beater Wing Cap Screws	Torque	70 N·m (52 lb.-ft.)
