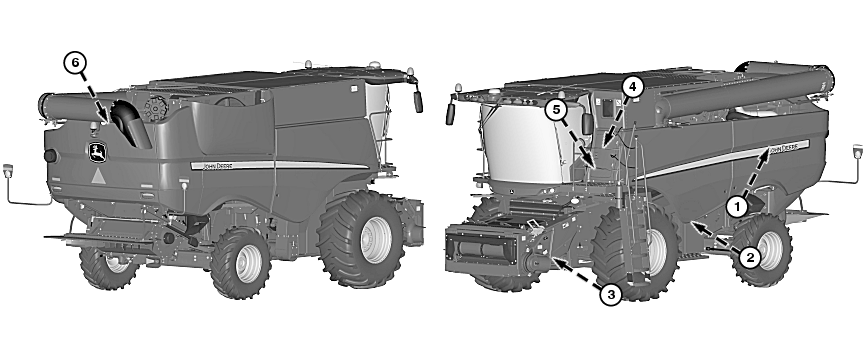

Every 400 Hours (S660 and S670 Non ProDrive Machines)

1. NOTE:


   H97642-UN-16AUG10


   H97639-UN-16AUG10


   H97640-UN-18AUG10

   Mechanical Shift / Push Button Shift


   H91518-UN-30APR08


   H97641-UN-16AUG10

   A - Filter

   B - Filter

   C - Plug

   D - Dipstick

   E - Reservoir Cap

   F - Filter

   It is not necessary to drain system when replacing filters.

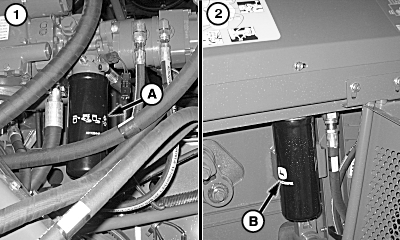

   Hydrostatic Charge Filter - Remove and replace filter (A). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

---




2. Hydraulic/Hydrostatic Filter - Remove and replace filter (B). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

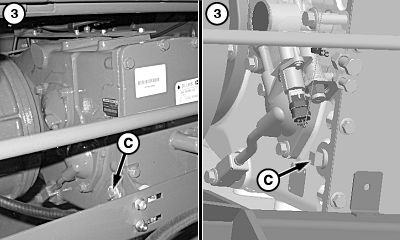

3. Transmission Oil - Remove plug (C) and check oil level. Add oil as needed to within 12 mm (1/2 in.) of bottom of hole.

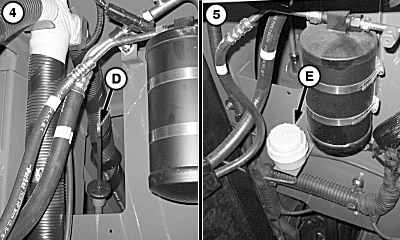

4. Primary Countershaft Gearcase Oil (Fixed and Variable Speed Feeder House) - Check primary countershaft gearcase oil level with dipstick (D). Add oil as needed.

5. Brake Fluid - Check brake fluid level. Look through reservoir cap (E). Add brake fluid to 6 mm (1/4 in.) from top. Do not let dirt get into brake fluid.

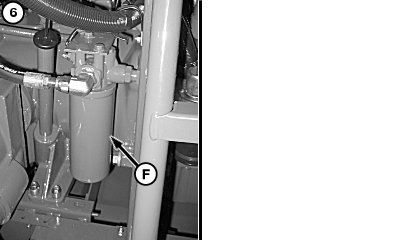

6. Engine Power Takeoff Gearcase Filter - Remove and replace filter (F). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.
