Single Point Yield Calibration Or Multi-Point Yield Calibration

H105056-UN-19MAR12

H105057-UN-19MAR12

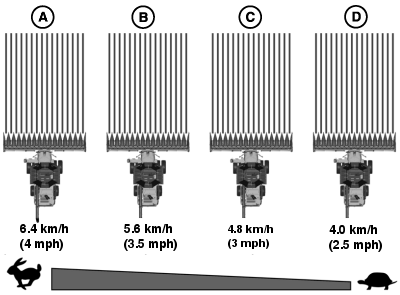

A - Load 1

B - Load 2

C - Load 3

D - Load 4

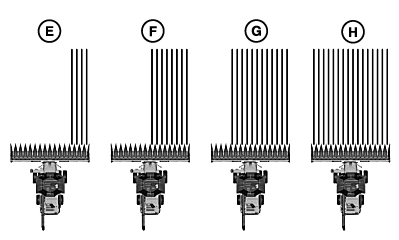

E - Minimum Flow

F - Medium Flow

G - Medium Flow

H - Maximum Flow

Single Point Yield Calibration

Single point yield calibration is performed when one or up to three calibration loads are collected.

This type of calibration is suggested when the harvested field has a fairly consistent yield and machine is operated at a constant ground speed with very little flow variation.

To collect a calibration load, harvest approximately 2,722 kg (6,000 lb.) at the maximum harvest speed.

Running one or two additional loads is not required, but it may allow the system to average the overall error.

Multi-Point Yield Calibration

Multi-point yield calibration is used when the harvested field is expected to have varying yields or machine is operated at varying speeds with varying grain flows.

This type of calibration collects each calibration load at each expected flow condition.

For each calibration load, harvest approximately 2,722 kg (6,000 lb.).

Run at least four calibration loads over various ground speeds (A—D) or at different cut widths to simulate four different flow rates (E—H).
