Every 400 Hours (S660 and S670 Push Button Shift Transmission Machines)

NOTE:

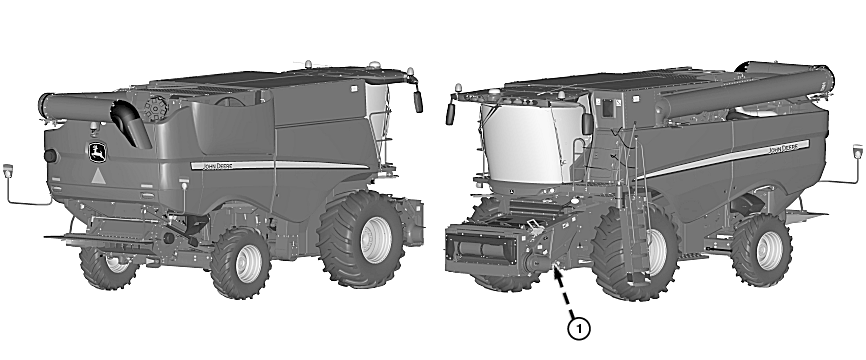

H105058-UN-02APR12

H105060-UN-12SEP13

A - Park Brake Cables

B - Distance

C - Shield

D - Balancer

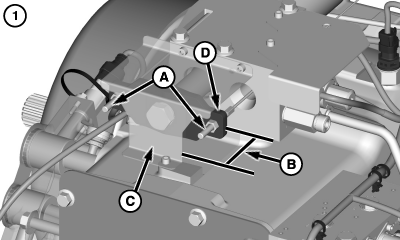

1. Park Brake Cylinder Cables (A) - Measure and verify that distance (B) from shield (C) to balancer (D) is approximately 33.5—36.5 mm (1-5/16—1-7/16 in.) on both sides.

CAUTION: Park brake cylinder cables are under extreme pressure. Cables MUST be adjusted by your John Deere dealer.

If cables need to be adjusted, see your John Deere dealer.
