Exhaust Filter AUTO Mode (Interim Tier 4/Stage III B)

NOTE:

H96154
H96154-UN-21APR10

H95618
H95618-UN-21APR10

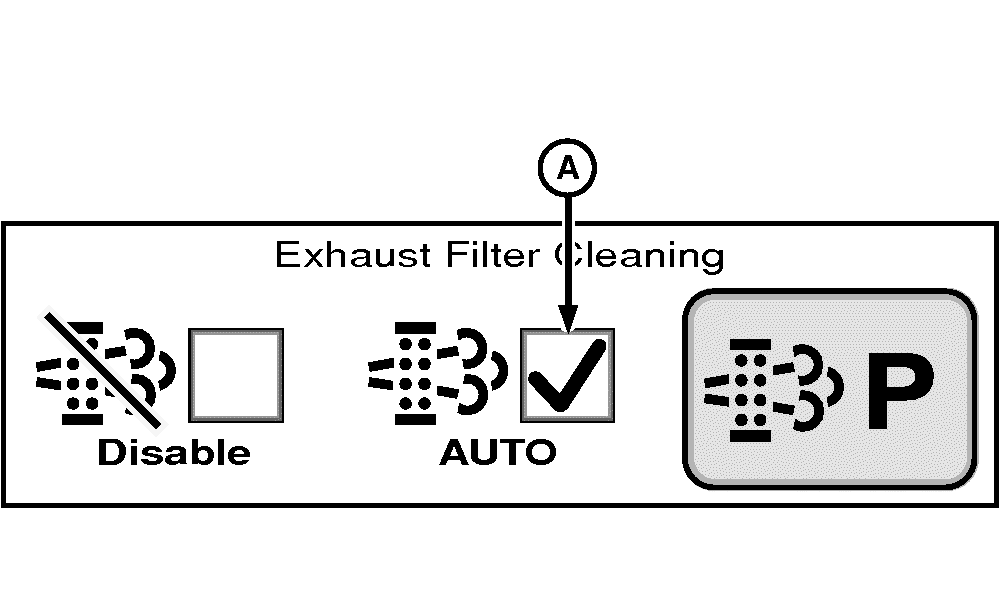

A - AUTO Exhaust Filter Cleaning Mode

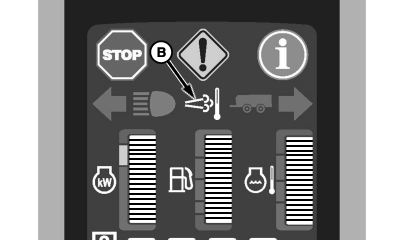

B - Exhaust Filter Cleaning Indicator

System defaults to AUTO mode when parked exhaust filter cleaning is complete or key switch is cycled. Always verify that AUTO mode is selected, unless in conditions where it may be unsafe. See When to Disable Exhaust Cleaning System in this section.

AUTO Mode (A) allows the Exhaust Filter System to intelligently perform exhaust filter cleaning as required. Cornerpost display indicator and armrest display provide operator information related to exhaust filter system activity.

Exhaust Filter Cleaning Indicator (B) illuminates when exhaust filter system is actively performing exhaust filter cleaning.

Exhaust Filter Restricted— depending on operating conditions, the Exhaust Filter System may request a change in operation. Armrest display will recommend operational changes.
