Break-In Check After 100 Hours (Tier 2/Stage II)

H81205
H81205-UN-15JUN04

H95377
H95377-UN-16FEB10

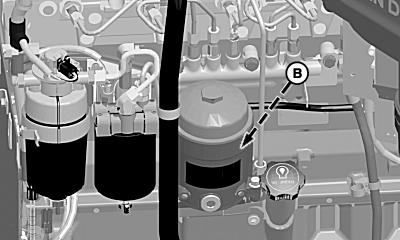

S660 and S670

H95420
H95420-UN-09MAR10

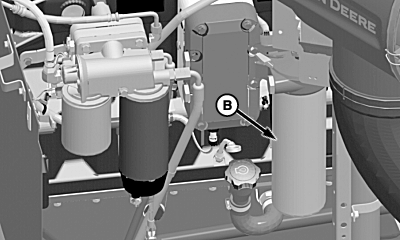

S680 and S690

A - Drain

B - Oil Filter

Drain crankcase oil by opening drain (A) and close once oil is drained.

Remove and retain cap and dispose of oil filter (B) properly.

Install oil filter and retain with cap.

Fill crankcase with proper amount of engine oil (see Diesel Engine Oil in Fuel And Lubricants section for oil specification).

OUO6075,0001116-19-20120413
