Break-In Check After 375 Hours (Interim Tier 4/Stage III B)

H81205
H81205-UN-15JUN04

H95310
H95310-UN-11FEB10

S660 and S670

H95397
H95397-UN-17FEB10

S680 and S690

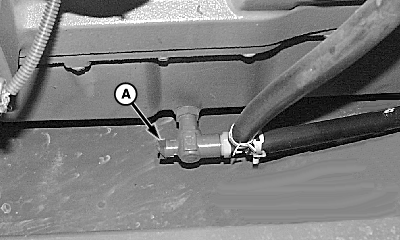

A - Drain

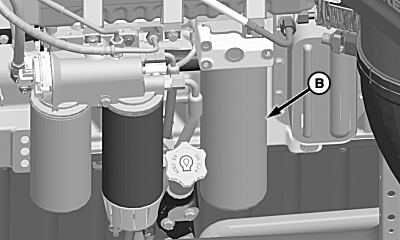

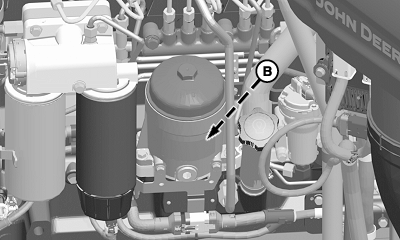

B - Oil Filter

Drain crankcase oil by opening drain (A) and close once oil is drained.

Remove and retain cap and dispose of oil filter (B) properly.

Install oil filter and retain with cap.

Fill crankcase with proper amount of engine oil (see Diesel Engine Oil in Fuel And Lubricants section for oil specification).

OUO6075,0001117-19-20120413
