Cleaning Out Machine (Periodic)

The photographs in this section show areas of the machine that require regular inspection and cleaning. While there are other areas that require regular cleaning, frequent attention to these areas provides the greatest impact on fire prevention.

Some of these photographs show accumulations of crop material and other debris prior to cleaning. This type of accumulation is not normal; it was allowed for illustrative purposes only.

IMPORTANT: These areas may require more frequent cleaning, even multiple times per day, depending on harvest conditions. Be aware of harvest conditions and adjust your cleaning schedule to ensure proper machine function and to reduce the risk of fire.

Other areas not covered in this section may also collect crop debris and MUST be cleaned periodically for machine function and appearance. Thoroughly inspect the entire machine on a regular basis throughout the harvest season.

Always follow all safety procedures posted on the machine and in the Operator’s Manual. Before carrying out any inspection or cleaning, always shut OFF engine, set parking brake and remove key.

Thoroughly clean machine from top to bottom with compressed air. First clean all areas accessible from engine deck. Start with engine compartment and work outwards and counterclockwise to other areas around engine compartment, floor underneath engine, top rear of rotor and rear deck, including top of diesel particulate filter (if equipped). Once top areas of machine are clean, proceed to cleaning areas accessible from ground level.

From ground level, clean rear underside of fuel tank area and top of the rear tailboard of the residue disposal system. Diesel particulate filter area (if equipped) will also need to be cleaned from ground level. Once the cleaning from ground level is finished, recheck engine compartment for any crop debris that could have blown in from ground level cleaning.

NOTE: (A) photos are for S550 machines only.

Engine Compartment (Top Areas)

H105220
H105220-UN-18APR12

H105236
H105236-UN-02MAY12

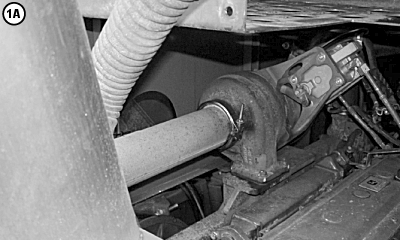

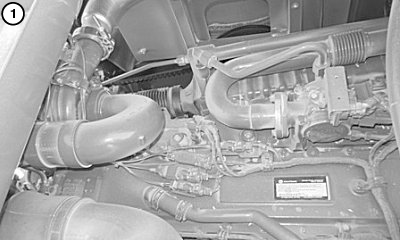

(1 and 1A) — Turbocharger(s)

Engine Compartment (Top Areas)

H105221
H105221-UN-18APR12

H105237
H105237-UN-02MAY12

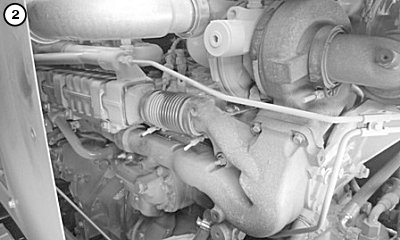

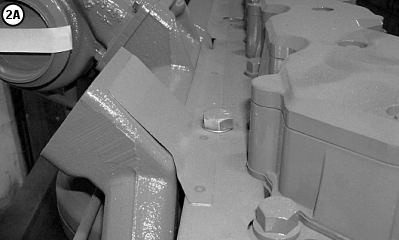

(2 and 2A) — Exhaust Manifold and Manifold Shield

Engine Compartment (Top Areas)

H105226
H105226-UN-02MAY12

H105238
H105238-UN-02MAY12

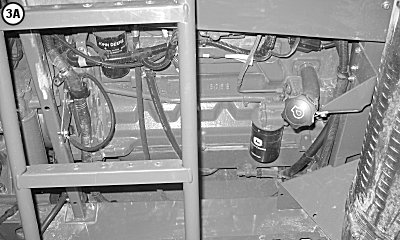

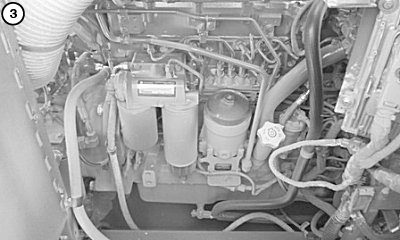

(3 and 3A) — Around Engine

Engine Compartment (Top Areas)

H105546
H105546-UN-21JUN12

H105547
H105547-UN-21JUN12

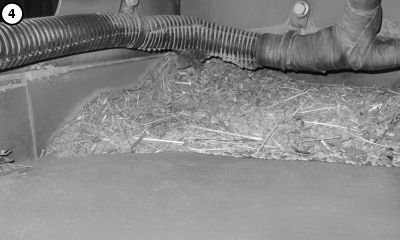

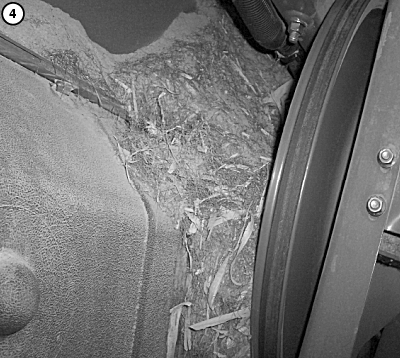

(4) — Underneath Engine

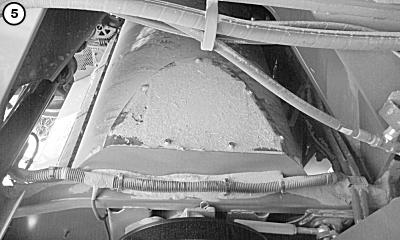

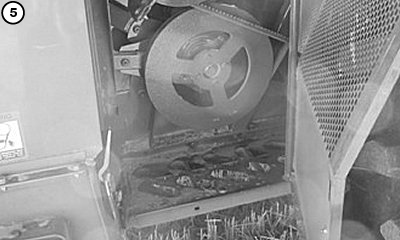

(5) — Top Rear of Rotor

Engine Compartment (Top Areas)

H105548
H105548-UN-21JUN12

H105549
H105549-UN-21JUN12

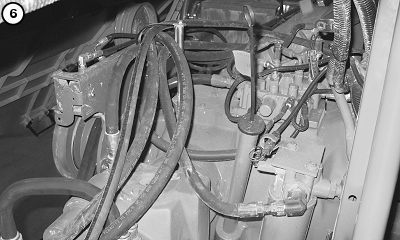

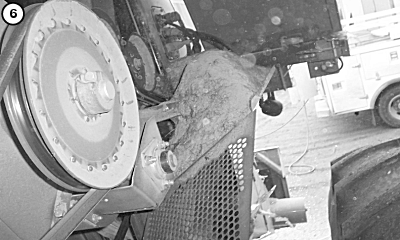

(6) — Main Engine Gearcase

(7) — Areas around and under Diesel Particulate Filter (If Equipped)

Engine Compartment (Top Areas)

H105550
H105550-UN-21JUN12

H105551
H105551-UN-21JUN12

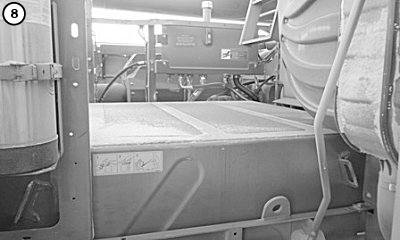

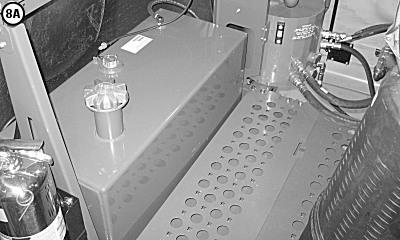

(8 and 8A) — On Top of Fuel Tank

Engine Compartment (Top Areas)

H105552
H105552-UN-21JUN12

H105553
H105553-UN-21JUN12

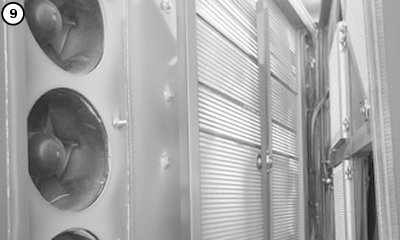

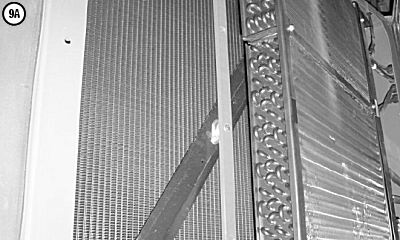

(9 and 9A) — Engine Cooling Package

Ground Accessible (Bottom Areas)

H100574
H100574-UN-20JUN11

H105346
H105346-UN-02MAY12

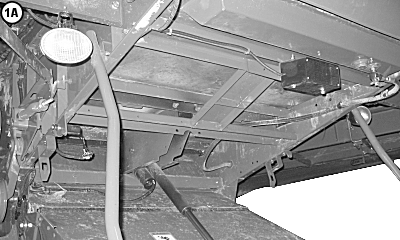

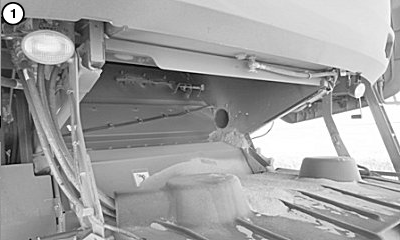

(1 and 1A) — Underneath Fuel Tank

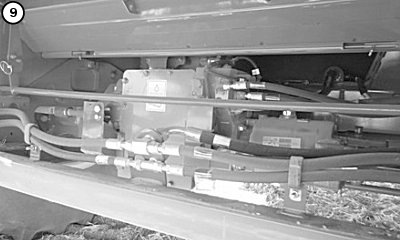

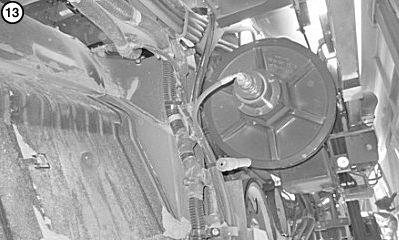

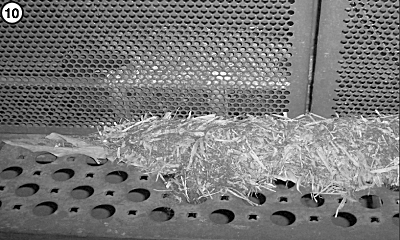

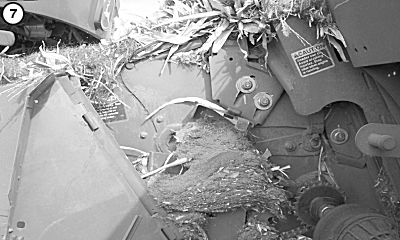

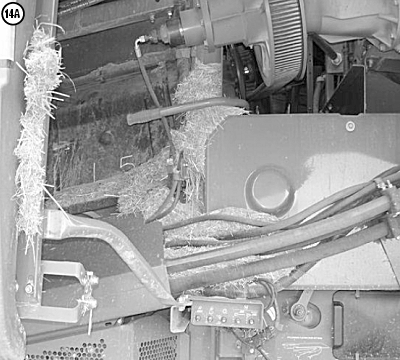

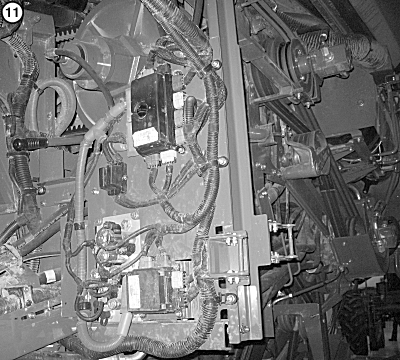

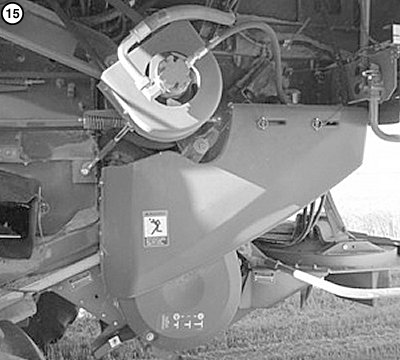

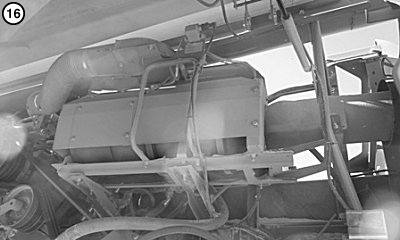

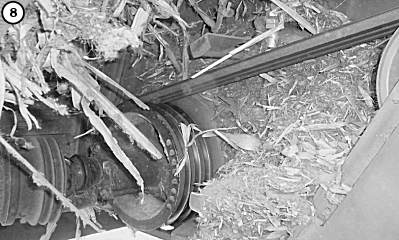

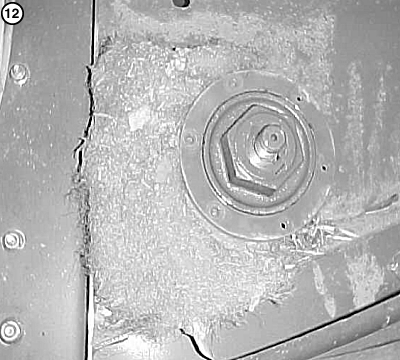

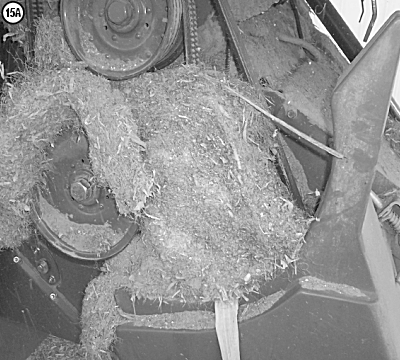

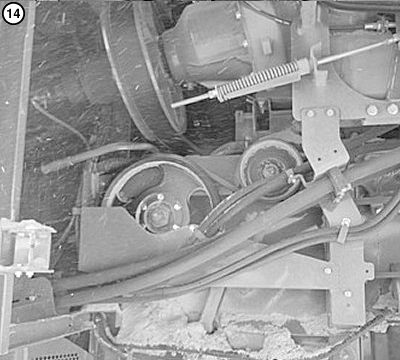

Ground Accessible (Bottom Areas)

IMPORTANT:

H105229
H105229-UN-19APR12

H105335
H105335-UN-02MAY12

Fuse Center (S550, S660 and S670 Machines)

Lubrication decals show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in Lubrication and Maintenance section for further information.

Bearing failures or overheating can result in a fire. To reduce bearing failures or overheating, always refer to lubrication decals on machine.

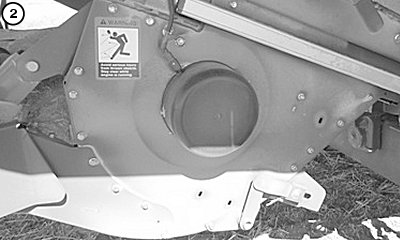

(2) — Areas Around Bearings and Bearing Guards (Various locations)

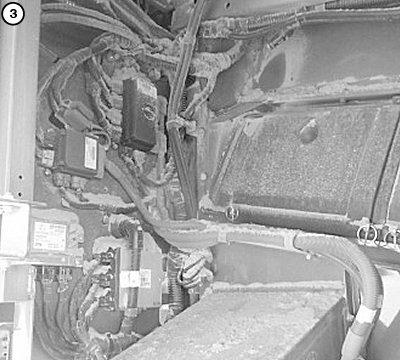

(3) — Fuse Center and Battery Box Areas
