CD/MP3 Home Page

H105093-UN-28MAR12

Infotainment Icon / Audio Application Icon

H105275-UN-26APR12

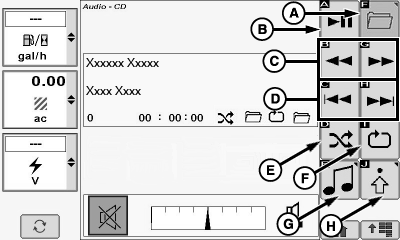

Folder Select Icon (A)

NOTE: Folder select icon and folder name icon are not available when playing a CD.

Allows operator to view the folder select page (if MP3 CD contains a folder structure).

Touch or press confirm switch when folder select icon is highlighted. Radio begins playing first song in each folder upon navigation.

Pause/Play Icon (B)

Allows operator to pause audio and resume playing audio.

Touch or press confirm switch when pause/play icon is highlighted.

Fast Reverse/Fast Forward Icon (C)

Allows operator to fast forward or fast reverse current playing audio.

Touch or press confirm switch when desired fast forward or fast reverse icon is highlighted. Press and hold available.

Previous Track/Next Track Icon (D)

Allows operator to select the previous song or advance to the next song.

Touch or press confirm switch when desired previous track or next track icon is highlighted.

Random Folder/Random All (E)

Allows operator to cycle through the following choices:

• Random Folder (MP3 CD only)
• Random All
• Random Off

Touch or press confirm switch when random icon is highlighted to cycle through choices.

Repeat Track/Repeat Folder/Repeat All Icon (F)

Allows operator to cycle through the following:

• Repeat Track
• Repeat Folder (MP3 CD only)
• Repeat Off

Touch or press confirm switch when repeat icon is highlighted to cycle through available choices.

Source Select Icon (G)

Allows operator the ability to cycle through radio tuner sources and external sources (see Radio Source Select in this section for additional information).

Touch or press confirm switch when source select icon is highlighted to cycle through available choices.

Audio Settings Icon (H)

Allows operator the ability to change audio settings (see Radio Settings in this section for additional information).

Touch or press confirm switch when select audio settings icon is highlighted.

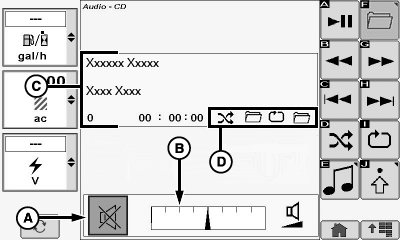

Mute Icon (A)

H105276-UN-02MAY12

Touch or press confirm switch when mute icon is highlighted.

Volume Bar Graph Area (B)

Allows operator to adjust current sound level.

Touch plus (+) symbol or minus (-) symbol or rotate selection dial to increase or decrease bar graph settings.

Display Area (C)

Allows operator to view the following:

• Artist Name
• Album Name
• Song Name
• Track Number
• Elapsed Time

Indicator Icon Area (D)

NOTE: Random folder icon and repeat folder icon only appear when playing a MP3 CD.

Allows operator to view which of the following icons were previously selected:

• Random Track
• Random Folder
• Repeat Track
• Repeat Folder

Folder Icon (A)

H105088-UN-27MAR12

Touch or press confirm switch when folder icon is highlighted.

Playlist Enable/Disable Icon (B)

Allows operator to enable/disable playlist mode (if available).

Touch or press confirm switch when playlist enable/disable icon is highlighted.

Folder Name (C)

Allows operator to view folder name (if folder was previously named).
