Grain Tank Loading Auger (Grain Tank Covers)—Adjusting

CAUTION:

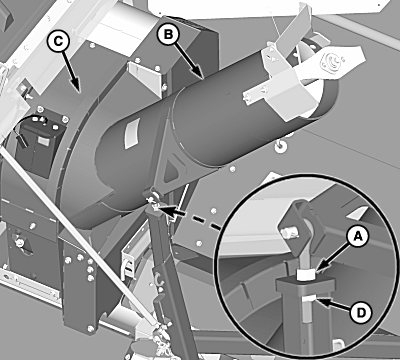

H98919-UN-28OCT10

A - Nut

B - Grain Tank Loading Auger

C - Transition Housing

D - Nut

NOTE: Verify that grain tank covers are fully raised.

Adjust nut (A) until grain tank loading auger (B) contacts transition housing (C).

Adjust nut (A) an additional 1/2 turn and tighten nut (D) to lock eyebolt in place.

NOTE: This keeps the loading auger housing tight against the transition housing making sure the loading auger is fully engaged to the driver on the gearbox.

H98920-UN-28OCT10

A - Nut

B - Turnbuckle

C - Bracket

NOTE: Lengthen or shorten turnbuckle to increase or decrease gap between loading auger housing and transition housing.

Pin at end of turnbuckle should rotate freely when properly adjusted.

Verify bracket (C) faces towards front of machine and tighten nut (A) to lock turnbuckle (B) in place.
