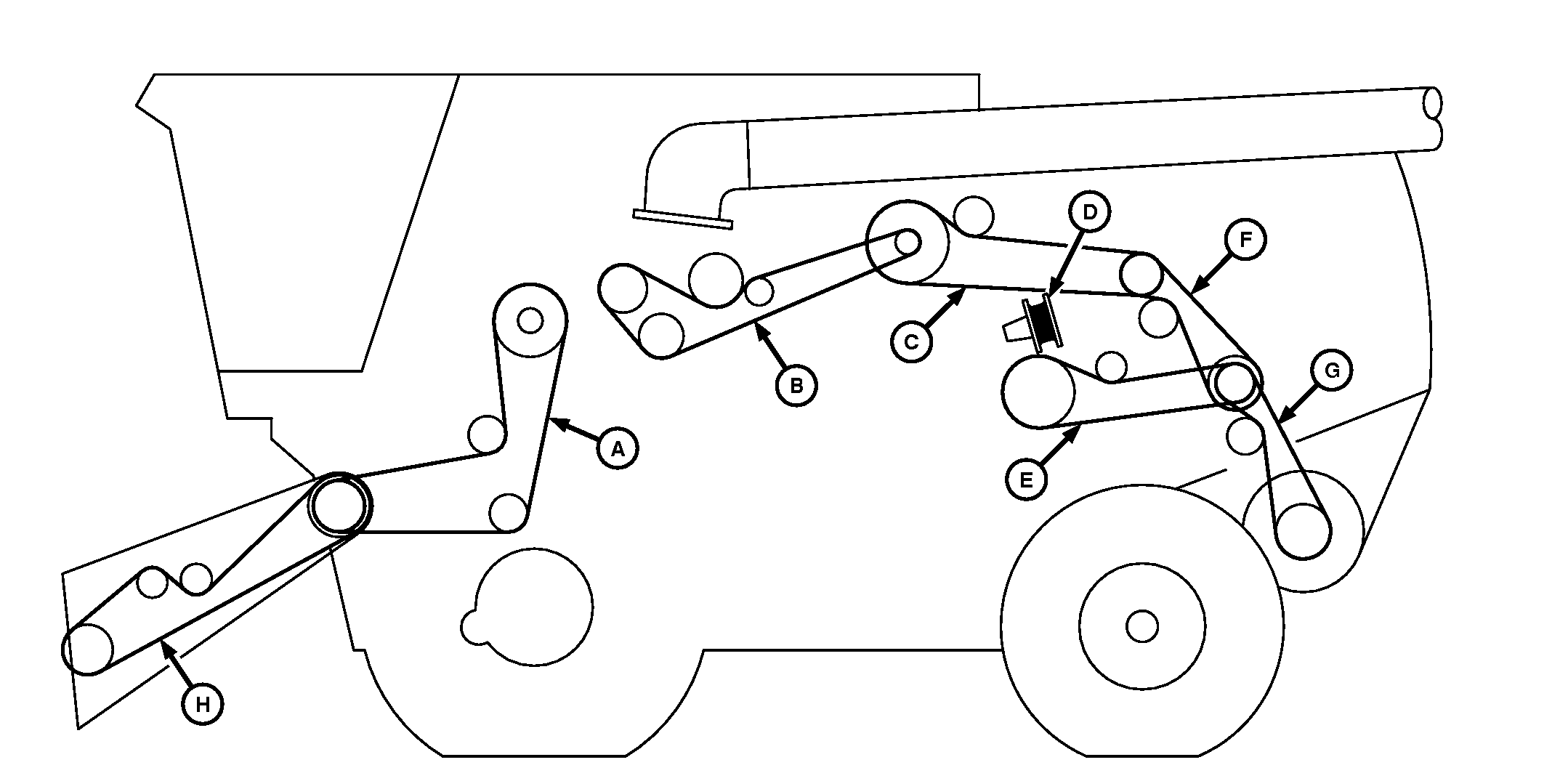

Drive Belts—Left-Hand

H96907-UN-16JUN10

S660 Machines
A	Header and Reel Pump Standard/High Capacity Belt	E	Discharge Beater Belts (Rice Machine)
B	Unloading Auger System, #60 Roller Chain	F	Countershaft, Discharge Beater and Chopper Belt
C	Unloading Auger System Belt	G	Straw Chopper Belts
D	Separator Variable Drive Belt	H	Fixed Speed Feeder House Drive Belt
E	Discharge Beater Belt (Non-Rice Machine)	H	Feeder House Variable Drive Standard/High Capacity Belt
S670 Machines
A	Header and Reel Pump Standard/High Capacity Belt or CommandTouch Multi-Speed Feeder House Drive Belt (Option)
B	Unloading Auger System, #60 Roller Chain (10,572 L (300 bu.) Grain Tank)
C	Unloading Auger System Belt
D	Separator Variable Drive Belt
E	Discharge Beater Belts
F	Countershaft, Discharge Beater and Chopper Belt
G	Straw Chopper Belts
H	Fixed Speed Feeder House Drive Belt
H	Feeder House Variable Drive Standard/High Capacity Belt or CommandTouch Multi-Speed Feeder House Drive Belt (Option)
S680 and S690 Machines
A	Header and Reel Pump Standard/High Capacity Belt or CommandTouch Multi-Speed Feeder House Drive Belt (Option)
B	Unloading Auger System, #80 Roller Chain (14,096 L (400 bu.) Grain Tank)
C	Unloading Auger System Belt
D	Separator Variable Drive Belt
E	Discharge Beater Belts
F	Countershaft, Discharge Beater and Chopper Belt
G	Straw Chopper Belts
H	Fixed Speed Feeder House Drive Belt
H	Feeder House Variable Drive Standard/High Capacity Belt or CommandTouch Multi-Speed Feeder House Drive Belt (Option)
