Tine Feed Accelerator Comb Floor (Rice Machines)

NOTE:

H105544
H105544-UN-20JUN12

H105543
H105543-UN-20JUN12

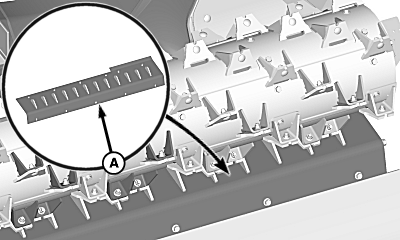

A - Comb Floor

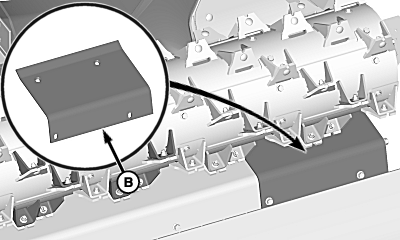

B - Smooth Liner Plate

Machine is shipped from factory with the comb floor installed. Comb floor can only be run with tine feed accelerator.

When comb floor (A) is removed for harvest the smooth liner plate (B) which was shipped with the machine must be installed (left side of machine).


Non Rice Harvest Information:

  • Corn - Remove comb floor and install smooth liner plate.
  • Soybeans - If splits become a concern, remove comb floor and install smooth liner plate.
  • Small Grains - Remove comb floor and install smooth liner plate.

Removing Comb Floor:

CAUTION:

H99239
H99239-UN-01DEC10

A - Quick-Lock Pin

B - Lever

Raise feeder house, lower safety stop, shut OFF engine, set parking brake and remove key.

Remove quick-lock pin (A) and move lever (B) up to open stone trap.

H86271
H86271-UN-10JUL06

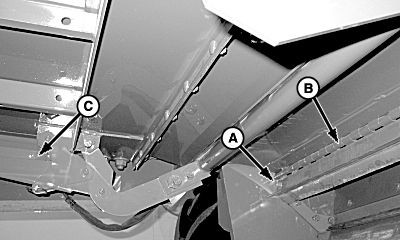

A - Cap Screws and Nuts

B - Feedplate Assembly

C - Lever

Remove and retain cap screws and nuts (A) on both sides of machine.

Remove quick-lock pin and lower lever (C) while removing feedplate assembly (B) at same time.

Raise feedplate lever (C).

H92220
H92220-UN-16JUN08

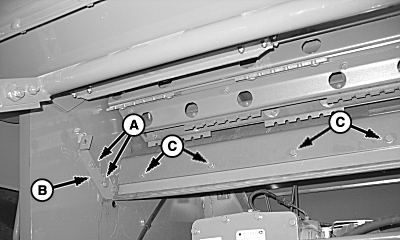

A - Hardware (4 Used)

B - Brackets (2 Used)

C - Cap Screws and Nuts (6 Used)

Remove and retain hardware (A) and bracket (B) from both sides of machine.

Remove and retain cap screws and nuts (C).

Remove and retain plow bolts and remove comb floor.

H105545
H105545-UN-21JUN12

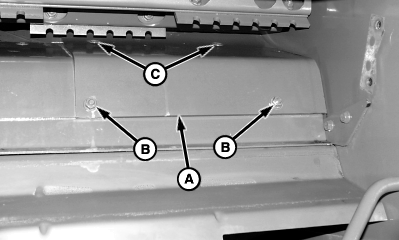

A - Smooth Liner Plate

B - Cap Screws and Nuts (2 Used)

C - Plow Bolts (6 Used)

Install smooth liner plate (A) shipped with machine on left-hand side.

Install previously removed cap screws and nuts (B).

NOTE: Plow bolt must be installed in holes that previously held comb floor to prevent grain loss.

Install previously removed plow bolts (C).

H92220
H92220-UN-16JUN08

A - Hardware (4 Used)

B - Brackets (2 Used)

C - Cap Screws and Nuts (4 Used)

Install previously removed cap screws and nuts (C).

Install previously removed bracket (B) on both sides of machine and retain with previously removed hardware (A).

H86271
H86271-UN-10JUL06

A - Cap Screws and Nuts

B - Feedplate Assembly

C - Lever

Lower feed plate lever (C) and install previously removed feedplate assembly (B).

Install previously removed cap screws and nuts (A) on both sides of machine.

Push lever forward and up to close feedplate door and retain with quick-lock pin.

H99239
H99239-UN-01DEC10

A - Quick-Lock Pin

B - Lever

Move lever (B) down to close stone trap and retain with quick-lock pin (A).
