Draper Belt Speed Adjust Switch (If Equipped)

Draper belt speed adjust switch changes speed of belt as determined by operator.

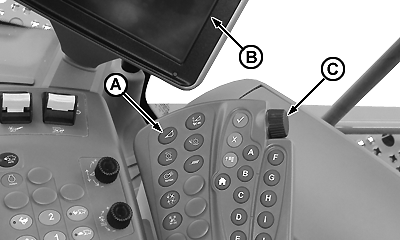

S Series Combine

1.
   CQ290165-UN-09DEC13

   A - Draper Belt Speed Adjust Switch

   B - CommandCenter Display

   C - Selection Dial

   Press draper belt speed adjust switch (A) TWICE.

---




2. Press (+ or -) on display (B), or rotate selection dial (C) to increase or decrease belt speed.

3. CommandCenter display shows operator adjustment setting.

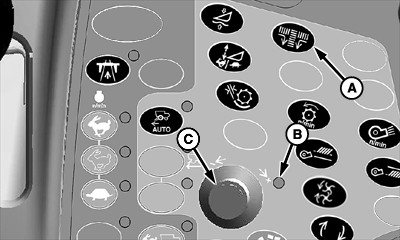

70 Series Combine

1.
   H87214-UN-16JAN07

   A - Draper Belt Speed Adjust Switch

   B - Indicator Light

   C - Selection Dial

   Press draper belt speed adjust switch (A). Indicator light (B) illuminates.

---




2. Turn selection dial (C) towards plus (+) symbol to increase belt speed or towards minus (-) symbol to decrease belt speed.

3. CommandCenter display shows operator adjustment setting.
