Open Side Shields

1.

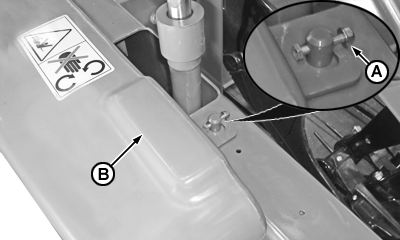

   CQ290174-UN-14JAN14

   Right-Hand Side Shown

   A - Cap Screw

   B - Side Shield

   Remove cap screw (A) to unlock side shield (B).

---




2. Lift shield upward and swing outward.

3. Close shield in reverse order of opening.
