Remove and Install Side Shields

1.

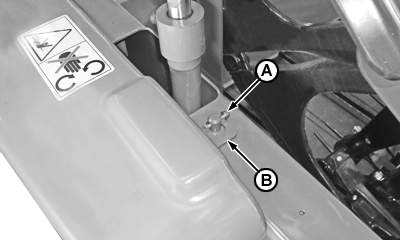

   CQ290175-UN-14JAN14

   Right-Hand Side Shown


   H103428-UN-15SEP11

   A - Cap Screw

   B - Side Shield Bracket

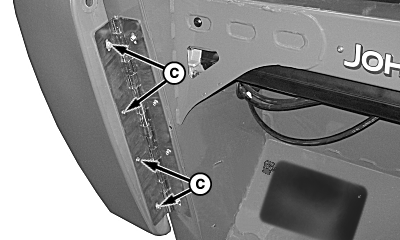

   C - Cap Screws (4 used)

   Remove retaining pin (A) but do not lift side shield bracket (B) off post.

---




2. IMPORTANT: Avoid machine damage. Support side shield when removing hinge hardware.

   Remove cap screws (C).

3. Lift side shield and remove.

4. Install side shield in reverse order of removal.
