Center Sump Cover Adjustment

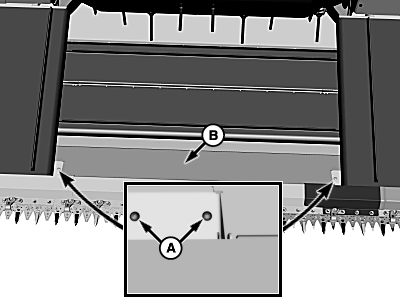

H112493
H112493-UN-06JAN15

A - Socket Head Cap Screws and Nuts (4 used)

B - Sump Cover

When harvesting crops in muddy conditions adjust center sump to maximize performance.

Remove and retain socket head cap screws (A).

Adjust center sump cover (B) rearward and install socket head cap screws and nuts.

DF67602,0000428-19-20150212
