Overall Dimensions

NOTE: Dimensions are approximate and subject to change without notice.

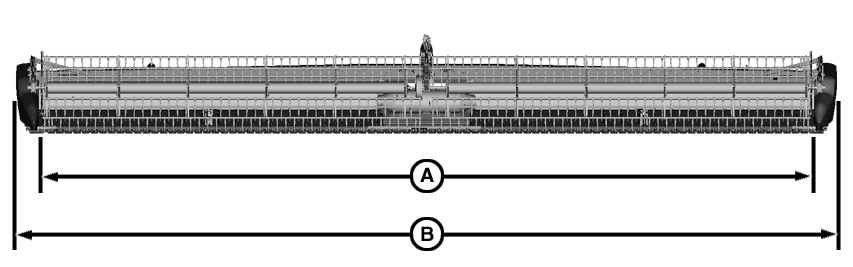

CQ290558-UN-18FEB15

	630FD	635FD	640FD	645FD
A	9.14 m (30 ft.)	10.67 m (35 ft.)	12.19 m (40 ft.)	13.72 m (45 ft.)
B	10.27 m (33.70 ft.)	11.79 m (38.70 ft.)	13.32 m (43.70 ft.)	14.75 m (48.4 ft.)

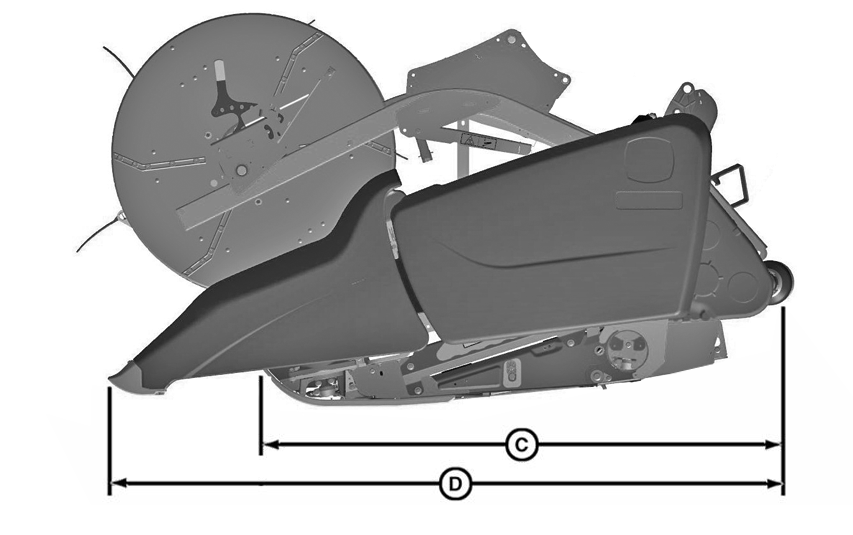

BM000113-UN-29APR15

	630FD	635FD	640FD	645FD
C	2.70 m (8.87 ft.)	2.70 m (8.87 ft.)	2.70 m (8.87 ft.)	2.70 m (8.87 ft.)
D	3.96 m (12.90 ft.)	3.96 m (12.90 ft.)	3.96 m (12.90 ft.)	2.74 m (9 ft.)

NOTE: Dimensions are approximate and subject to change without notice.
