Every 50 Hours—Main Gearbox

NOTE:

H109624
H109624-UN-14JAN14

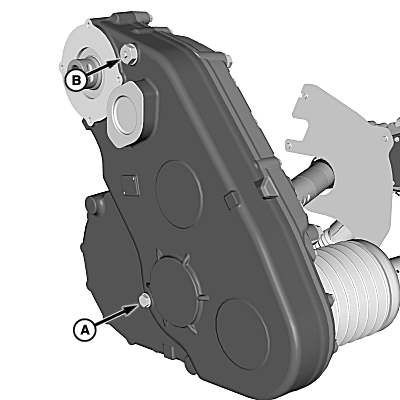

Left-Hand Side Of Main Gearbox

H109625
H109625-UN-14JAN14

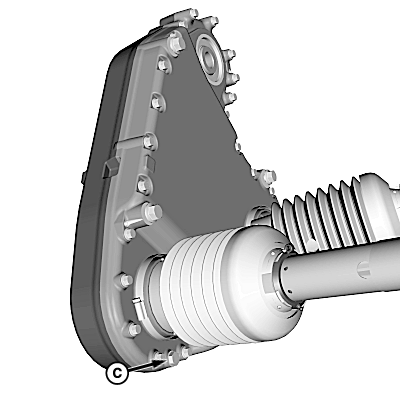

Right-Hand Side Of Main Gearbox

A - Check Plug

B - Fill Plug

C - Drain Plug

All checks should be made with platform on ground and engine shut OFF.

Check Main Gearbox Oil Level

Remove check plug (A) to check oil level.

NOTE: To ease filling, add oil at fill plug (B) with breather.

If necessary, add 80W-90 oil up to check plug hole.

NOTE: If oil level is too full, remove drain plug (C) and drain oil as needed.

Install plugs.

DF67602,0000437-19-20150224
