Every 50 Hours—90° Gearbox

Check 90° Gearbox Oil Level

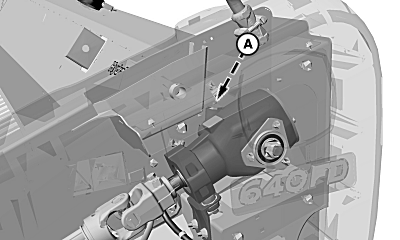

H93808-UN-16JUN09

Left-Hand Side Shown

A - Dipstick

Remove dipstick (A) to check oil level.

If necessary, add 80W-90 oil to proper level and install dipstick.

Repeat procedure on opposite side of platform.
