Every 50 Hours—Center Feed Gearbox

Check Center Feed Gearbox Oil Level

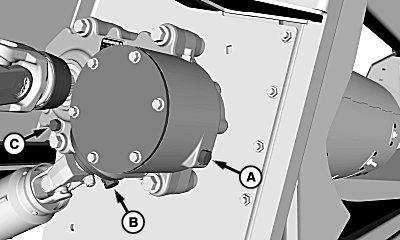

H109630-UN-14JAN14

A - Fill Plug

B - Drain Plug

C - Drain Plug

If necessary, add 80W-90 oil up to check plug hole.

NOTE: If oil level is too full, remove either drain plug (B or C) and drain oil as needed.

Remove both drain plugs to fully drain gearbox.

Install plugs.
