Every 50 Hours—Side Draper Gearbox

Check Side Draper Gearbox Oil Level

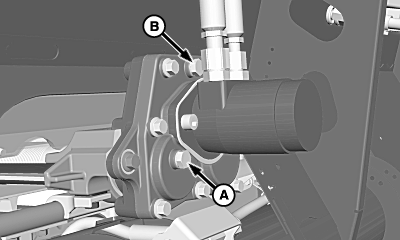

H93913
H93913-UN-07MAY10

A - Check Plug

B - Fill Plug

Remove check plug (A) to check oil level.

NOTE: To ease filling, add oil at fill plug (B).

If necessary, add 80W-90 oil up to check plug hole.

Install plugs.

Repeat procedure on opposite side of platform.

DF67602,000043A-19-20150224
