Every 50 Hours—Input Drive Shaft

Lubricate Input Drive Shaft Grease Fitting

H93459
H93459-UN-19FEB09

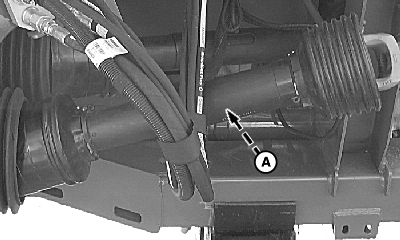

A - Input Drive Shaft Grease Fitting

Align hole in shield to locate grease fitting. Apply grease to input drive shaft grease fitting (A).

DF67602,0000441-19-20150224
