Every 50 Hours—Reel

Lubricate Reel Grease Fitting

H93461
H93461-UN-19FEB09

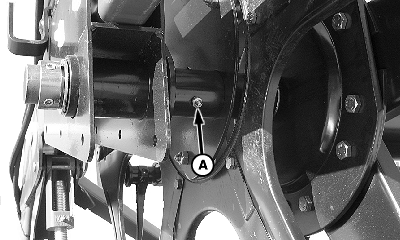

Right-Hand Side Shown

H93462
H93462-UN-26MAR09

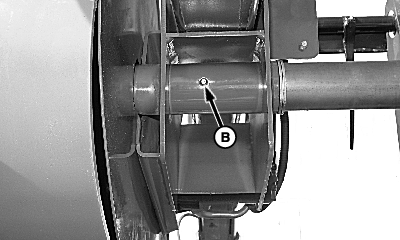

Center Arm (Split Reel) Shown

A - Reel Grease Fitting

B - Reel Grease Fitting (Split Reel Only)

Apply grease to reel grease fitting (A) on both ends of reel.

Split Reel Only: Also apply grease to reel grease fitting (B) at center lift arm.

DF67602,0000442-19-20150224
