Every 200 Hours—Auxiliary Sensor Arm

CAUTION: Serious injury or death may result if platform lowers during lubrication. Raise platform completely, engage feeder house safety stop, shut OFF engine, set parking brake, and remove key.

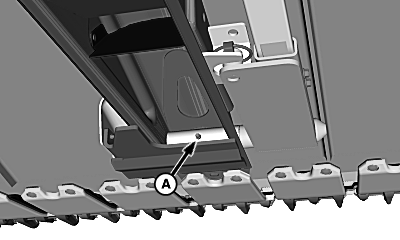

H96862-UN-10JUN10

A - Sensor Arm Grease Fitting

Apply grease to sensor arm grease fitting (A).

Repeat procedure for each sensor arm.
