Every 200—Knife Drive Slip Clutch

CAUTION: Serious injury or death may result if platform lowers during lubrication. Raise platform completely, engage feeder house safety stop, shut OFF engine, set parking brake, and remove key.

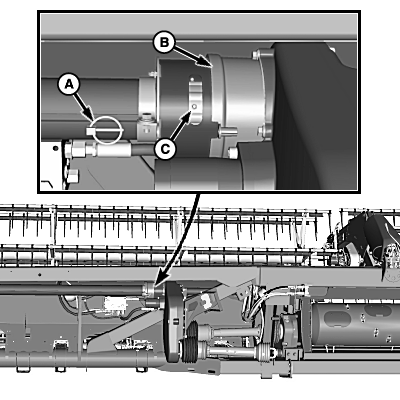

H93032-UN-02MAR10

A - Retaining Pin

B - Clutch Sleeve

C - Slip Clutch Grease Fitting

Remove retaining pin (A).

Slide clutch sleeve (B) over to expose access window.

Apply grease to slip clutch grease fitting (C).

NOTE: Slip clutch has multiple fittings for ease of access only. Applying grease to one fitting is sufficient.
