Every 200 Hours—Feed Drum Drive Shaft Slip Clutch

CAUTION: Serious injury or death may result if platform lowers during lubrication. Raise platform completely, engage feeder house safety stop, shut OFF engine, set parking brake, and remove key.

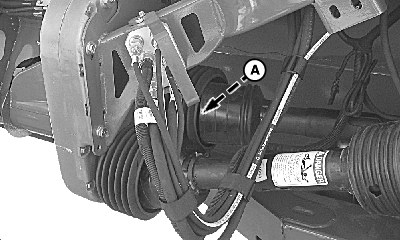

H93460-UN-19FEB09

A - Slip Clutch Grease Fitting

Push back rubber boot to locate grease fitting. Apply grease to slip clutch grease fitting (A).
