Every 200 Hours—Float Arm Pivot

CAUTION: Serious injury or death may result if platform lowers during lubrication. Raise platform completely, engage feeder house safety stop, shut OFF engine, set parking brake, and remove key.

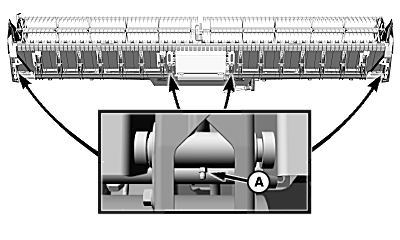

H109631-UN-14JAN14

A - Pivot Grease Fitting

Apply grease to pivot grease fitting (A) at four locations.
