Every 400 Hours—Reel Lift Cylinders

CAUTION: Serious injury or death may result if platform lowers during lubrication. Raise platform completely, engage feeder house safety stop, shut OFF engine, set parking brake, and remove key.

H93036-UN-19FEB09

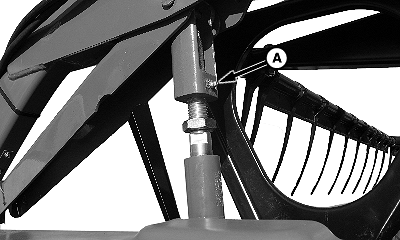

A - Reel Lift Cylinder Grease Fitting

Apply grease to reel lift cylinder grease fitting (A) on each end of platform.

NOTE: On split reel model, there is not a grease fitting on center lift cylinder.
