Hydraulic Pressure

CQ290573
CQ290573-UN-27FEB15

CQ290574
CQ290574-UN-27FEB15

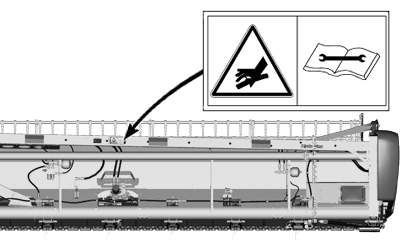

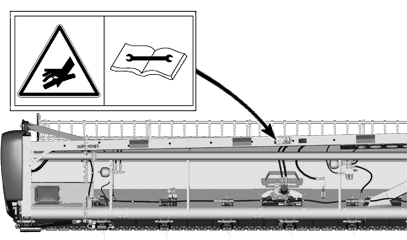

Avoid bodily injury from hydraulic oil and gas under pressure. Hydraulic float system is under pressure even when detached from combine.

Before removing, disassembling or changing any cutterbar float system components or accumulator, do the following:

  1. Attach platform to combine.
  2. Sound horn, start engine and use header float pressure control in cab to relieve pressure.
  3. Stop engine, remove key, and set parking brake.

Use only DRY NITROGEN for recharging accumulator.

See your John Deere dealer.

DF67602,000045D-19-20150227
