Hydraulic Pressure

CQ290577
CQ290577-UN-27FEB15

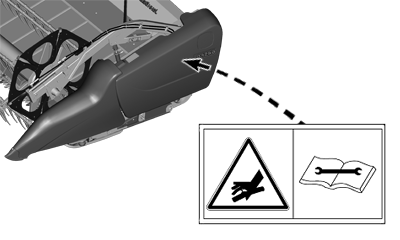

Avoid bodily injury from hydraulic oil and gas under pressure. Hydraulic float system is under pressure even when detached from combine.

Before removing, disassembling or changing any cutterbar float system components or accumulator, do the following:

  1. Attach platform to combine.
  2. Sound horn, start engine and use header float pressure control in cab to relieve pressure.
  3. Stop engine, remove key, and set parking brake.

Use only DRY NITROGEN for recharging accumulator.

See your John Deere dealer.

DF67602,000045F-19-20150227
