Daily Maintenance

1.

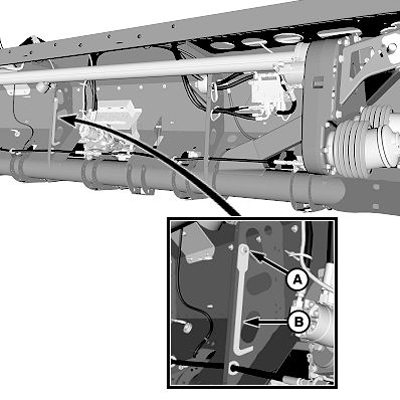

   CQ290564-UN-23FEB15

   A - Cap Screw and Nut

   B - Crop Material Removal Tool

   Remove and retain cap screw and nut (A).

---




2. Remove crop material removal tool (B).

3. IMPORTANT: Failure to remove foreign material may result in poor crop conveyance, premature belt wear, or belt mistracking.

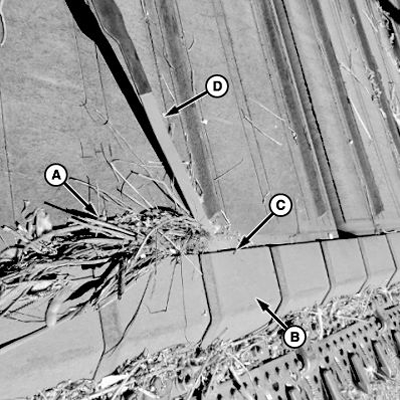

   CQ290565-UN-23FEB15

   A - Material

   B - Crop Ramp

   C - Interface

   D - Crop Material Removal Tool

   If material (A) is present at crop ramp (B) and belt interface (C), remove material with crop material removal tool (D).

   NOTE: Insert crop material removal tool between belt and crop ramp. Pull material toward center of head.

---




4.

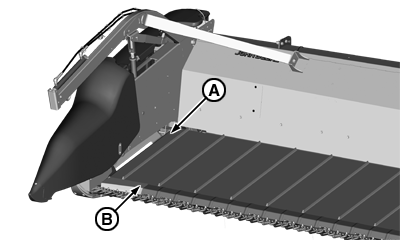

   CQ290562-UN-23FEB15

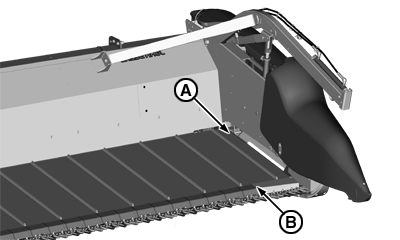

   CQ290563-UN-23FEB15

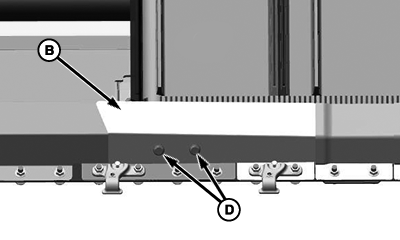

   BM000735-UN-09JUN16

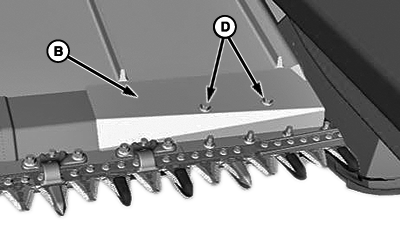

   BM000471-UN-07OCT15

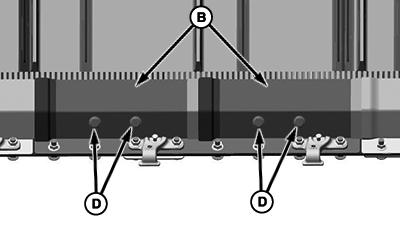

   BM000734-UN-09JUN16

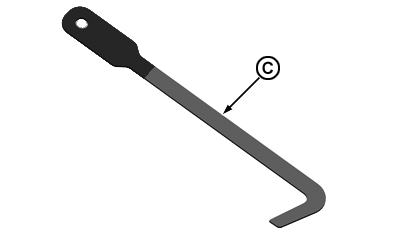

   CQ290321-UN-06JUN14

   A - Belt

   B - Crop Ramps

   C - Crop Material Removal Tool

   Clean belt (A) if dirt accumulate.

   1. Release the screws (D) and remove the crop ramp (B).

   2. Pull front edge of the belt (A) out from underneath the crop ramps (B) and clean belt with crop material removal tool (C).

      NOTE: Is not necessary release the belt tension and remove crop ramp.

   3. Install the crop ramp (B) and tighten the screws (D)

   4. Put the belt under crop ramps again.

---




5.

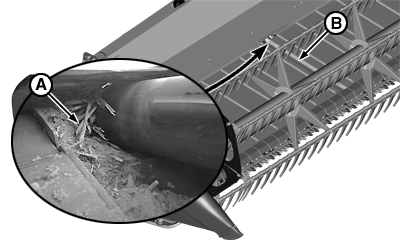

   CQ290566-UN-23FEB15

   A - Debris

   B - Center Belt Rollers

   Clean debris (A) from center belt rollers area (B) on both sides.

---




6.

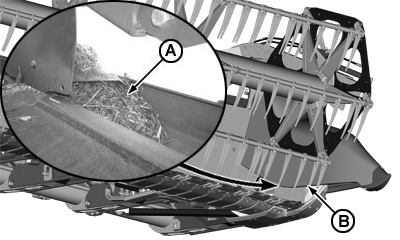

   CQ290567-UN-23FEB15

   A - Debris

   B - Perma-Glide™ Area

   Clean debris (A) from Perma-Glide™ area (B) on both sides of the machine.

---




7.

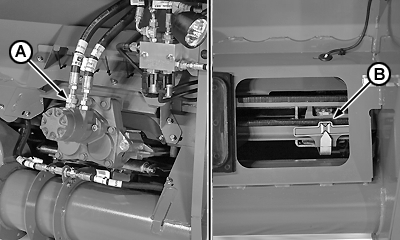

   CQ290324-UN-10JUN14

   Clean debris from areas (A and B) on both sides of the machine.

---




8. CAUTION:

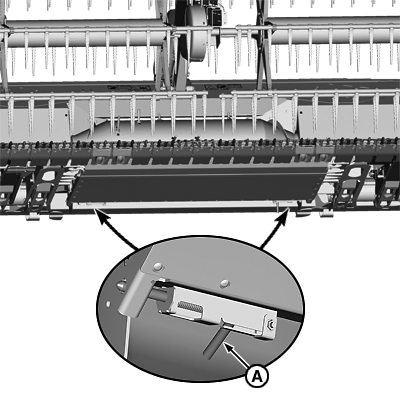

   CQ290561-UN-23FEB15

   Stay clear of clean out door when opening. Door can fall open quickly causing serious injury.

   Watch for falling chaff and debris when door is opened.

   Clean out any debris built up in center draper belt drives and surrounding area.

   1. Completely raise platform and engage feeder house safety stop.

   2. Shut OFF engine, set parking brake, and remove key.

   3. While supporting door, release latch pins (A). Repeat on opposite side of door.

   4. Slowly lower door and clean out any debris built up in center draper belt drives and surrounding area.

   5. Close door and lock latch pins (A).

   IMPORTANT: Failure to remove material may result in premature belt wear or tracking issues.

   NOTE: Depending on type of harvesting conditions, crop and soil, the center draper clean out frequency may vary. Check as required.

---
