Feeder House Manual Unlatching
H74310-UN-18NOV02

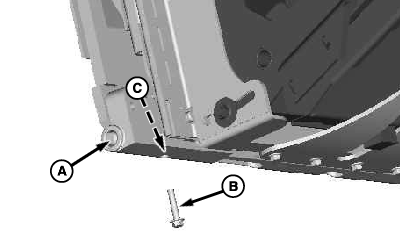

A - Latching Pins
B - Cap Screw
C - Hole
To remove header if shear screw should fail, push latching pins (A) through latch plates and install M12 cap screw (B) in hole (C). Repeat on opposite side.|
