Feed Drum Finger Timing

1.

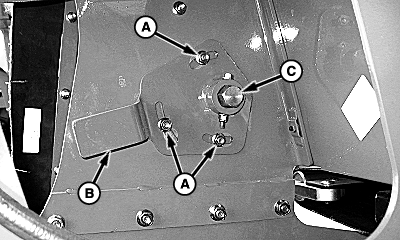

   H93047-UN-09MAR09

   A - Flange Nut

   B - Handle

   C - Hex Shaft

   To change finger timing loosen three flange nuts (A) on right-hand end of feed drum.

---




2. Rotate timing plate using handle (B) clockwise to advance or counterclockwise to retard timing. Hex shaft (C) extends out from timing plate to allow use of a wrench to assist in rotating.

3. Tighten nuts (A) to specification.

   Item	Measurement	Specification
   Nut	Torque	60 N·m (44 lb-ft)
