Attaching Platform to Combine

1. IMPORTANT: Attaching platform to a pre-70 series combine requires retrofit kits. See your John Deere dealer.

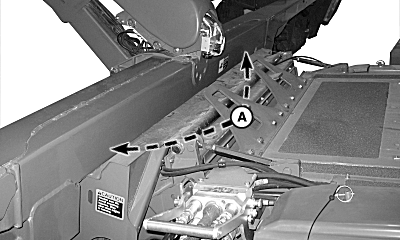

   H95659-UN-11MAR10

   A - Pockets

   Drive combine forward slowly until feeder house is centered in platform opening.

---




2. Completely raise platform, verifying pivot blocks on feeder house are seated in pockets (A) under top beam of platform.

3. CAUTION:


   TS696-UN-21SEP89


   H90891-UN-26FEB08

   A - Feeder House Safety Stop

   To prevent serious injury, shut OFF engine, set parking brake, and remove key. Opening hydraulic line fittings to lower feeder house results in an immediate dropping of feeder house and header. To prevent injury, raise feeder house completely and lower safety stop (A) onto hydraulic cylinder rod.

   Shut OFF engine, set parking brake, and remove key.

---




4. Lower safety stop (A) onto hydraulic cylinder rod.

5.
   H74036-UN-19NOV02

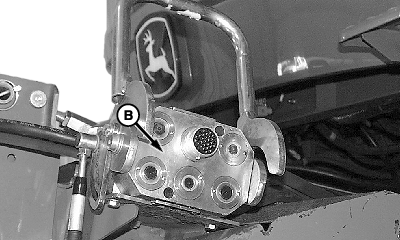

   H74037-UN-05NOV02

   A - Cover

   B - Multi-Coupler Face

   Remove cover (A) and clean multi-coupler face (B).

---




6.
   H93450-UN-16FEB09

   A - Handle

   B - Multi-Coupler

   Open handle (A) and remove multi-coupler (B) from storage bracket.

---




7. IMPORTANT: To prevent damage to latching cable, do not actuate latching pins with header on ground, as screws on handle can shear.

   NOTE: If screw shears, see REPLACEMENT SHEAR SCREW LOCATION in this section.

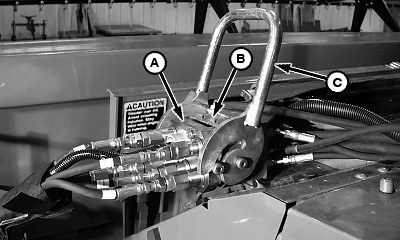

   H70036-UN-19SEP01

   A - Multi-Coupler

   B - Receptacle

   C - Handle

   Install multi-coupler (A) onto feeder house receptacle (B) and close handle (C).

   1.

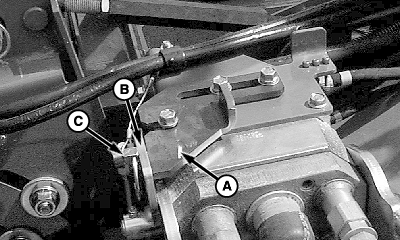

      H81286-UN-23JUN04

      Slide Lock Plate Equipped

      A - Lock Plate

      B - Multi-Coupler Latch Assembly

      C - Quick-Lock Pin

      Machines Equipped with Slide Lock Multi-Couplers:

      When multi-coupler handle is closed, slide lock plate (A) through multi-coupler latch assembly (B) and retain with quick-lock pin (C).

      IMPORTANT: Failure to slide lock plate through multi-coupler assembly could result in header falling off while harvesting or transporting.

   ---




   2.

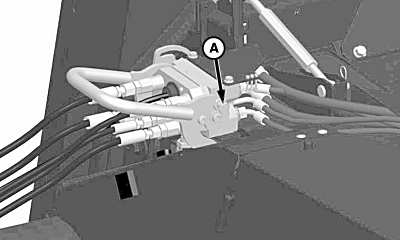

      H82373-UN-07FEB05

      Button Lock Equipped Latch

      A - Button Lock

      Machines Equipped with Button Lock Multi-Couplers:

      When multi-coupler handle is fully closed, button lock (A) automatically locks couplers together.

      IMPORTANT: Failure to close multi-coupler fully so button lock can engage could result in header falling off while harvesting or transporting.

---




8. NOTE: With platform attached, latch pins should move freely through latch plate holes. If latch pins do not extend through latch plates, make sure latching plates on platform are properly adjusted.

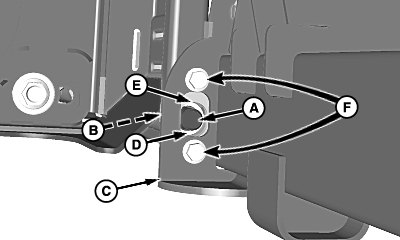

   H96248-UN-06MAY10

   A - Latch Pin

   B - Latch Plate

   C - Bracket

   D - Clearance

   E - Top of Plate

   F - Cap Screws

   Latch pins (A) should move freely through latch plate holes in header when multi-coupler is latched. Latch plate (B) must make contact with bracket (C). Less clearance (D) should be maintained between bottom of plate and pin rather than top of plate (E) and pin. This may require latch plate to be flipped.

   If adjustment is needed: Remove cap screws (F), flip latch plate (B) end for end, reinstall, and tighten cap screws to specifications:

   Item	Measurement	Specification
   Cap Screws	Torque	130 N·m (96 lb.-ft.)

---




9. IMPORTANT:

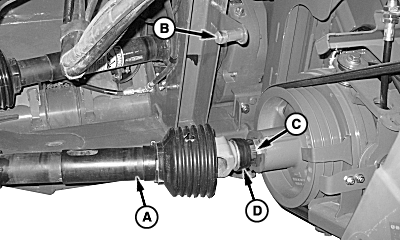

   H95660-UN-11MAR10

   A - Telescoping Drive Shaft

   B - Storage Position

   C - Feeder House Drive Shaft

   D - Quick Attach Collar

   Do not operate platform with feeder house drive shield open. Drive shield in photo is open for clarity.

   Store multi-coupler cover on platform and lock in place.

---




10. Unlock and open feeder house drive shield.

11. Remove telescoping drive shaft (A) from storage position (B) on platform and attach to feeder house drive shaft (C). Verify quick attach collar (D) is fully locked on drive shaft.

12. Close and lock feeder house drive shield.
