Detaching Platform from Combine

1.

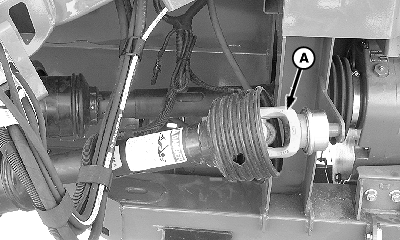

   H93451-UN-16FEB09

   Drive Shaft Shown in Storage Position

   A - Drive Shaft

   Disconnect platform drive shaft (A) from feeder house and place in storage position.

---




2.

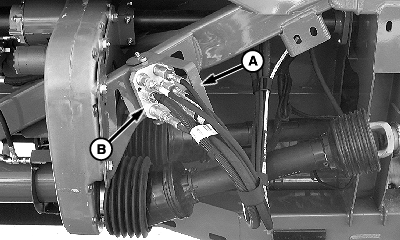

   H93450-UN-16FEB09

   A - Handle

   B - Multi-Coupler

   Remove multi-coupler cover from platform storage position.

---




3. Disconnect multi-coupler (B) from combine, place on platform storage bracket and close handle (A).

4.

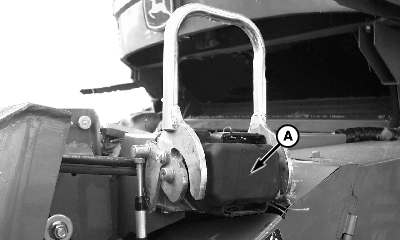

   H74036-UN-19NOV02

   A - Cover

   Reinstall cover (A) on combine.

---




5. Start engine and lower feeder house until platform is on ground and feeder house pivot blocks are free.

6. Slowly drive combine rearward until feeder house is clear of platform.
