Spare Knife Storage

CAUTION: Reduce risk of injury, always wear gloves when handling knives and stand to rear when removing or storing knife.

Spare knife (A) can be stored inside frame body.

1.

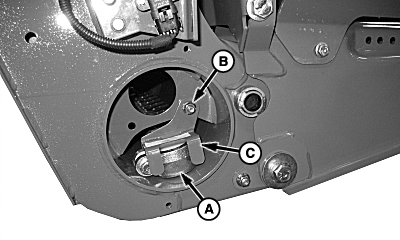

   H93068-UN-31JUL09

   Right-Hand Side Shown

   A - Spare Knife

   B - Nut

   C - Bracket

   To remove spare knife, remove nut (B) and bracket (C).

---




2. Carefully pull knife out of frame.

   NOTE: For dual knife, repeat procedure on other side of platform.

3. To store knife, reverse procedure.
