Stubble Light Bulb Replacement

1.

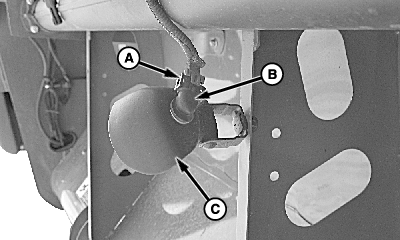

   H93040-UN-29OCT08

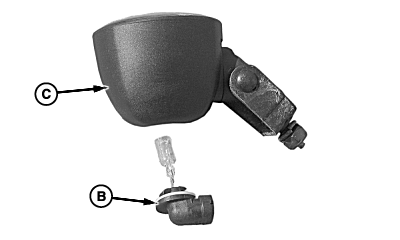

   H94014-UN-13MAY09

   A - Harness Connector

   B - Bulb Base

   C - Housing

   Disconnect wiring harness (A) from bulb base (B).

---




2. Rotate bulb base to release it from housing (C).

3. NOTE: Bulb does not separate from base, base and bulb assembly (B) is replaced as one piece.

   Install new bulb base into housing.

4. Connect wiring harness and check alignment of light.
