Header Height Sensing – HydraFlex Platforms with Auxiliary Sensors

H96860
H96860-UN-10JUN10

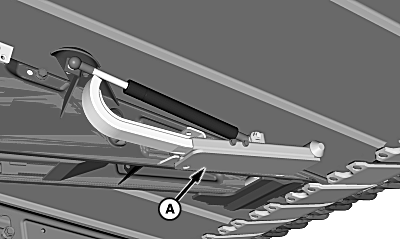

A - Auxiliary Sensor

Auxiliary sensors (A) on HydraFlex heads allow using header height sensing when cutting wheat or other standing crops with cutterbar locked in rigid position. Sensors allow using automatic height control in a cutting range of 102 - 356 mm (4-14 in.). In this mode, both calibration and operation are identical to a rigid head.

An additional hybrid mode of operation is also possible using auxiliary sensors. This allows header activation button 2 to operate in a hydraulically-locked (rigid) mode and header activation button 3 to operate in the flex mode. Enabling this feature requires a change in diagnostic address.

See your John Deere Dealer.

KR43067,00005AB-19-20100610
