Set Cutterbar Knife Timing

1. CAUTION: Knife drive shaft is heavy. Use suitable lifting device to assist with removal.

   NOTE: Only one drive shaft must be disconnected to set timing.

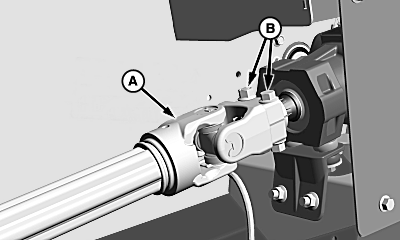

   H96408-UN-19MAY10

   Left-Hand Side Shown

   A - Telescoping Drive Shaft

   B - Cap Screws and Nuts

   Disconnect one telescoping knife drive shaft (A).

   1. Loosen cap screws and nuts (B).

   2. Pull drive shaft coupler off gearbox shaft.

---




2.

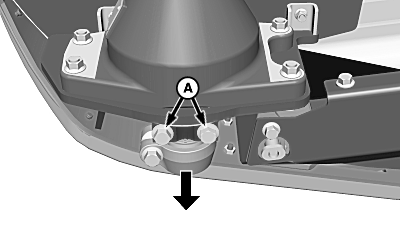

   H103443-UN-16SEP11

   A - Bearing Mount Cap Screws

   On each end of platform, manually rotate knife drive gearbox until bearing mount cap screws (A) are positioned completely outward.

---




3. Reconnect telescoping drive shaft. Tighten to specification.

   Item	Measurement	Specification
   Drive Shaft Mounting Cap Screws	Torque	140 N·m (103 lb.-ft.)
