User Calibration Procedures (S Series Combines)

IMPORTANT: Before performing header calibration:

  • Completely raise platform
  • Unlock and lower auxiliary sensor arms, if equipped (See AUTOMATIC HEADER HEIGHT CONTROL — RIGID MODE in OPERATING THE PLATFORM section)

See your combine Operators Manual for available calibrations.

H94478
H94478-UN-31MAR10

Diagnostic Icon

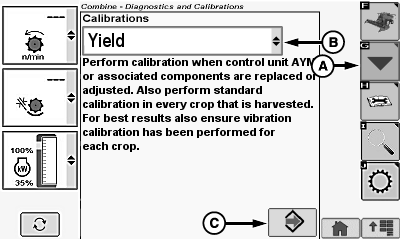

H94928
H94928-UN-11OCT10

A - Calibration Icon

B - Calibration Menu

C - Enter/Accept Icon

Calibrations are performed using instructions shown on screen. Operator selects diagnostics menu, selects desired calibration, and follows instructions given.

  1. Highlight diagnostic icon and press confirm switch.

  2. Highlight calibration icon (A) and press confirm switch.

  3. Highlight calibration menu (B) and press confirm switch.

  4. Select desired calibration and press confirm switch.

  5. Highlight Enter/Accept icon (C) and press confirm switch.

  6. Follow instructions shown on screen to perform desired calibration.

  7. Repeat procedure as necessary for additional calibrations.

SS43267,0000074-19-20120615
