Description of Automatic Header Height Control Systems

H108141
H108141-UN-07JUN13

S Series Shown

H86522
H86522-UN-13DEC06

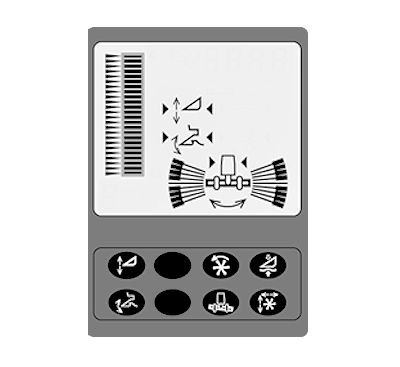

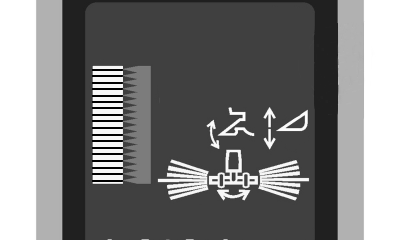

Automatic Header Height Control systems compensate for uneven ground and controls horizontal and vertical position of the header. The system continuously compares the preset position and the actual position, thus keeping the header in the desired working position. Values are entered by the response rate adjust and sensitivity adjust along with the selection dial located on armrest.

System Requirements:

  • Road transport disconnect switch must be in field position.
  • Engine is running.
  • Header engaged.
  • Desired header control mode activated.

Lateral Tilt Adjustment—Two modes

  • Manual Adjust — hydraulic components are directly activated by multi-function lever.
  • Automatic Adjust — parallel adjustments of the header in relation to the ground are carried out by sensors on each end of header. This ensures that the distance between the header and the ground is equal on both the left-hand and right-hand sides.

Platform Height Adjustment—Four Modes

  • Manual Adjust — hydraulic components are directly activated by multi-function lever.
  • Automatic Height Resume — platform can be set to any position within the feeder house range.
  • Automatic Height Sensing / HydraFlex Mode — height of the platform is maintained with height sensors attached to the platform. This ensures that header height is always constant over rough terrain.
  • Automatic Float Control — machine maintains a constant header pressure with ground contact. NOTE: Automatic Float Control is not recommended for 600F and 600FD platforms as premature wear of the poly skid shoes may occur.

IMPORTANT: Manually adjusting tilt and height settings will deactivate any automatic functions.
