Automatic Header Height Control — Rigid Mode

Operating a flex platform in rigid mode may be desired for some crops and conditions. A combination of hydraulic adjustments and mechanical components will allow a flex platform to be operated in rigid mode.

NOTE: Rigid mode sensor arms MUST be in down position and calibrated each time they are used.

1. Set HydraFlex pressure to maximum, >2700 psi (186 bar).

   1.
      H100053-UN-03FEB11

      A - HydraFlex Pressure Switch

      B - Selection Dial

      S Series Combine:

      To operate in rigid mode, press HydraFlex pressure switch (A) and rotate selection dial (B) clockwise to increase pressure.

   ---




   2.
      H93483-UN-10MAR10

      A - HydraFlex Pressure Switch

      B - Selection Dial

      70 Series Combine:

      To operate in rigid mode, press HydraFlex pressure switch (A) and rotate selection dial (B) clockwise to increase pressure.

2. NOTE:


   H93968-UN-06MAY09


   H93969-UN-06MAY09

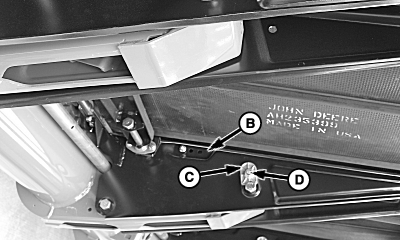

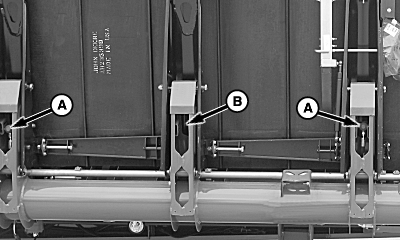

   A - HydraFlex Cylinder

   B - Float Arm without HydraFlex Cylinder

   C - Lockout Bracket

   D - Hardware

   Operator may install lockout brackets on float arms with hydraulic cylinders (B), if desired.

   On float arms without a HydraFlex cylinder (A), install lockout brackets (C) and hardware (D).

   IMPORTANT: Avoid equipment damage. Lockout brackets must be removed before using platform in flex mode again.

---




3.
   H96861-UN-10JUN10

   View Below Platform

   A - Sensor Arm

   B - Float Arm

   C - Quick-Lock Pin

   D - Pin Storage Location (Sensor Arm Unlocked)

   E - Pin Location (Sensor Arm Locked Up)

   F - Cap Screws and Lock Nuts

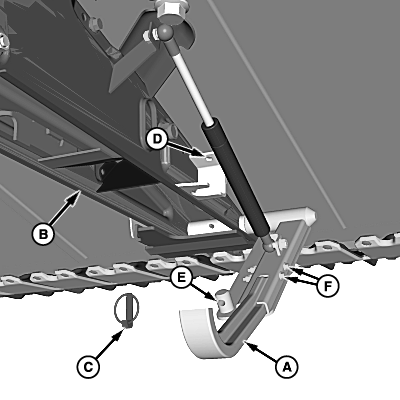

   Auxiliary sensor arms (A) are located under platform, attached to a float arm (B).

   To release sensor arms:

   1. Remove quick-lock pin (C) and allow arm to lower.

      NOTE: Quick-lock pins must be removed for off the ground cutting.

   2. Install pin at storage location (D).

      IMPORTANT: Avoid header height malfunction and equipment damage. When sensor arms are unlocked (in use), quick-lock pin MUST be stored on float arm (D). Do NOT store pin on sensor arm (E).

      NOTE: To achieve higher cut heights it may be necessary to remove hardware (F), adjust sensor arm reach, and reinstall hardware.

---




4. To store sensor arms:

   1. Remove quick-lock pin from storage location (D).

   2. Completely lift sensor arm and install pin to lock arm in raised position (E).
