Set Reel Safety Stops

1.

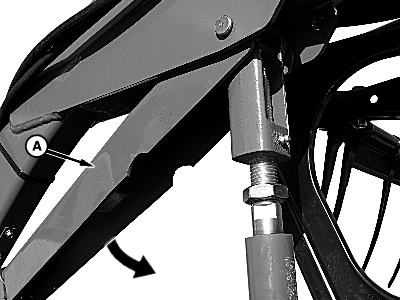

   H112270-UN-19NOV14

   Right-Hand Side of Header Shown

   A - Safety Stop

   Raise reel completely and engage safety stops (A) on reel lift cylinders for both sides of platform. Stop must be snapped over cylinder with lock clip.

   CAUTION: Center reel lift cylinder is hydraulically locked out when electrical signal from combine is removed (shutting OFF combine).

---




2. Shut OFF engine, set park brake, and remove key.
