Armrest Functions

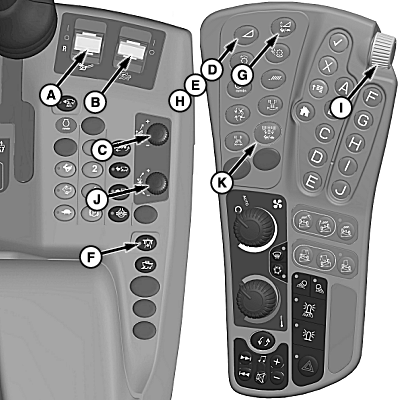

H111118-UN-16APR14

S-Series Combines

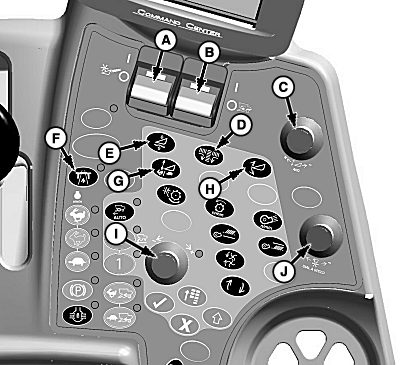

H91273-UN-24APR08

70-Series Combine

A - Header Engage and Feeder House Reverser Switch

B - Separator Engage Switch

C - Header Height/HydraFlex™ Pressure Control Dial

D - Draper Belt Speed Adjust Switch

E - Cutterbar Pressure Adjust Switch

F - Road Transport Disconnect Switch

G - Feeder House Rate/Sensitivity Adjust Switch

H - Cutterbar Tilt Adjust Switch (Rigid Draper ONLY)

I - Selection Dial (Operating Adjustments and Controls)

J - Reel Speed or Belt Pickup Speed Dial

K - Side Belt Speed Reduction Switch (Rigid and Flex Drapers ONLY)
