Adjust Reel Fingers

1. CAUTION: To avoid serious injury; raise reel completely, engage reel safety stops on both ends, shut OFF engine, set park brake, and remove key.

   IMPORTANT: Reel to knife clearance must be readjusted whenever finger pitch is changed. Failure to do so may cause damage to reel and/or cutterbar.

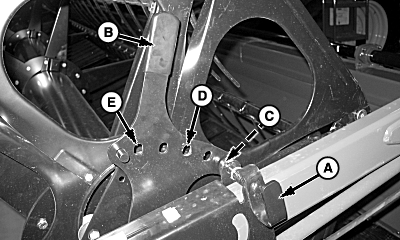

   H90719-UN-07MAY08

   Left-Hand Side Shown

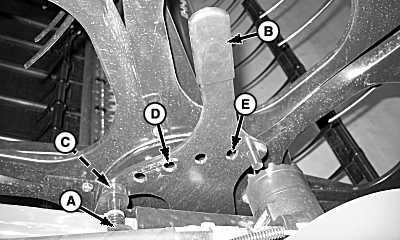

   H90720-UN-07MAY08

   Right-Hand Side Shown

   A - Lock Pin

   B - Handle

   C - Most Aggressive

   D - Medium Aggressive

   E - Least Aggressive

   Pull and rotate lock pin (A) on one side so it is disengaged from reel.

---




2. On opposite side, pull lock pin (A) and using handle (B) set desired finger picking setup (C, D, or E).

3. Once desired setup is obtained, engage lock pins (A) on both sides of reel.

4. Readjust reel to knife clearance (see Adjusting Minimum Reel Height and Leveling Reel in this section).
