Remove and Install Feed Drum Finger Guides

1.

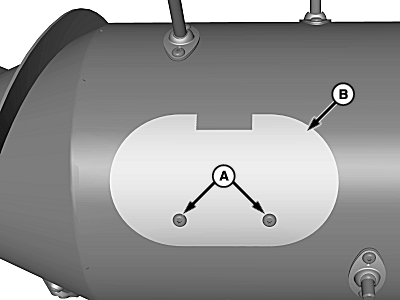

   H111251-UN-20MAY14

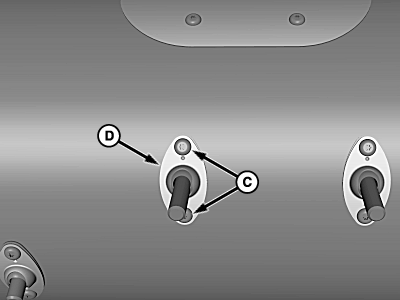

   H111252-UN-20MAY14

   A - Socket Head Cap Screws

   B - Access Hole Cover

   C - Socket Head Cap Screws

   D - Finger Guide Flanges

   Remove socket head cap screws (A) and access hole cover (B).

---




2. NOTE: Finger guide cap screws have a nut, accessed from inside feed drum.

   Remove finger guide socket head cap screws (C) and nuts.

3. Replace finger guide flanges (D) and balls as necessary.

4. Reinstall guide assembly with cap screws and nuts.

5. Install access hole cover and cap screws.
