Center Draper Belt Tension

1. CAUTION: When working under platform always lower hydraulic cylinder safety stop onto cylinder rod to prevent platform from lowering.


   TS696-UN-21SEP89


   H90891-UN-26FEB08

   A - Feeder House Safety Stop

   Completely raise feeder house and lower safety stop (A) onto hydraulic cylinder rod.

---




2. Shut OFF engine, set park brake, and remove key.

3.
   H111250-UN-20MAY14


   H111255-UN-21MAY14

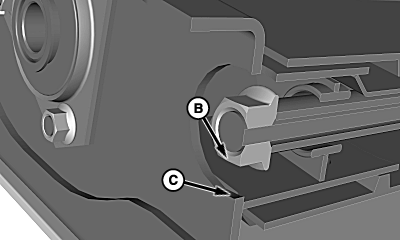

   Cross-Sectional View of Tensioning Screw

   A - Tensioning Screw

   B - Nut

   C - Plate

   Adjust center belt tension using tensioning screw (A) located under platform. Tighten screw so surface of nut (B) is flush with outside surface of plate (C).

---




4. Check operation of center draper belt and readjust as necessary.
