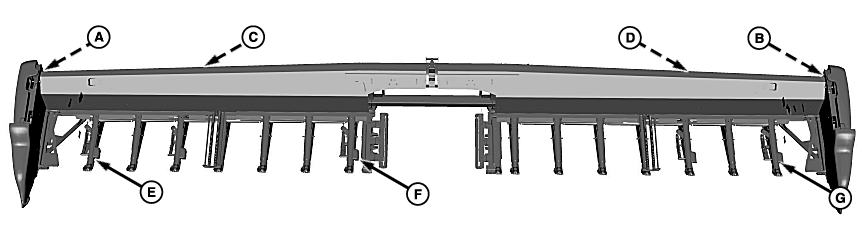

Header Height Sensor Locations

H112269-UN-19NOV14

HydraFlex™ Mode Sensor Locations

A - Right-Hand Side Header Height Sensor

B - Left-Hand Side Header Height Sensor

C - Center Header Height Sensor 2

D - Center Header Height Sensor 1

E - Right-Hand Side Auxiliary Header Height Sensor

F - Center Auxiliary Header Height Sensor

G - Left-Hand Side Auxiliary Header Height Sensor
