Remove and Install Feed Drum Fingers

1.
   H111251-UN-20MAY14

   A - Socket Head Cap Screws

   B - Access Hole Cover

   Remove socket head cap screws (A) and access hole cover (B).

---




2.

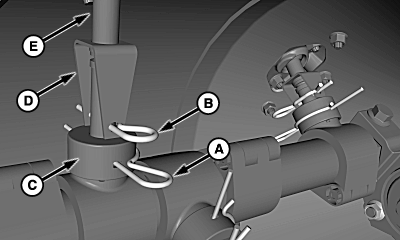

   H111253-UN-20MAY14

   A - Pin

   B - Pin

   C - Finger Collar

   D - Finger Retainer

   E - Feed Drum Finger

   Remove pins (A and B).

---




3. NOTE: Retain finger ball and inside finger guide if guide cap screws were removed.

   Remove collar (C), retainer (D), and finger (E).

4. IMPORTANT: Feed drum fingers in middle of drum are different from outside feed drum cone fingers. Intermixing fingers results in finger breakage and damage to feed housing around feed drum.

   Replace fingers and parts as necessary.

5.
   H111251-UN-20MAY14

   A - Socket Head Cap Screw

   B - Access Hole Cover

   Install previously removed access cover (B) and socket head cap screws (A).

---
